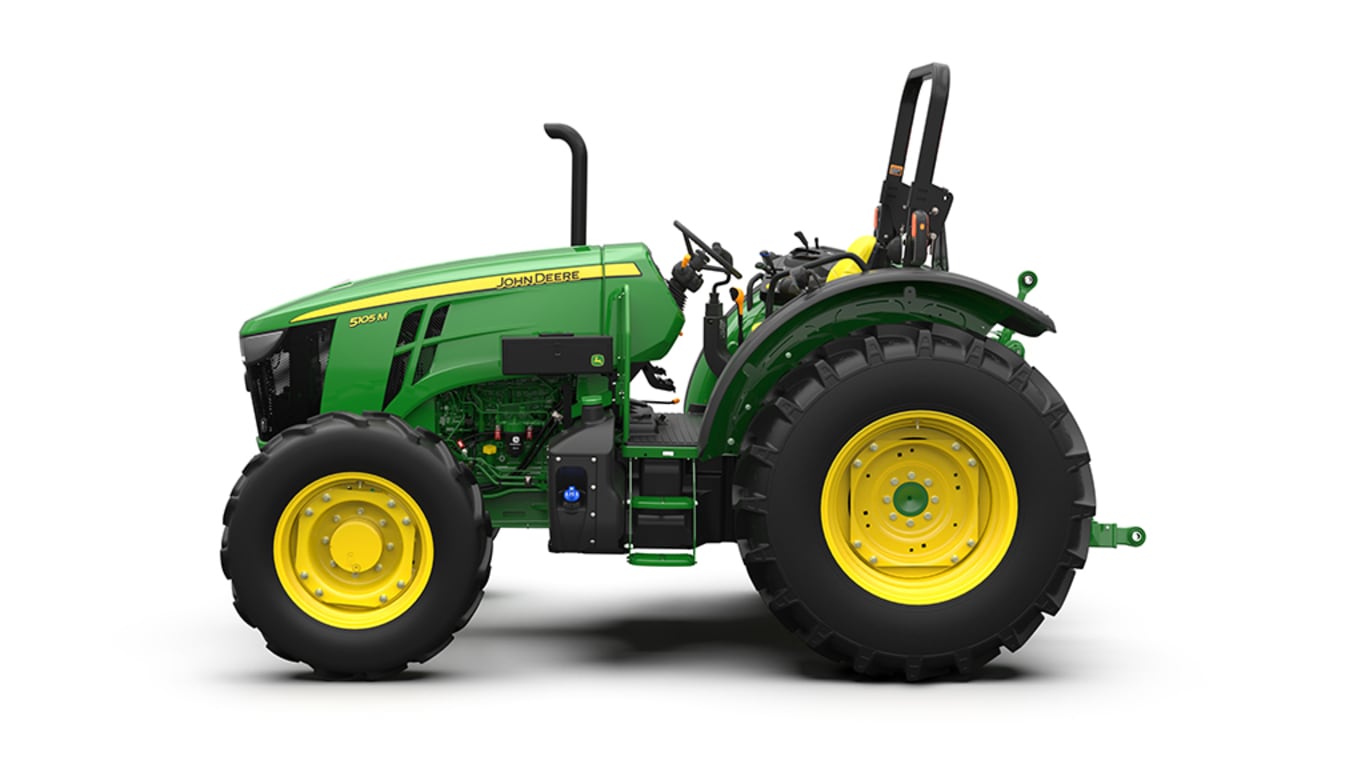

Utility Tractor - 5105M Back

Model Number :

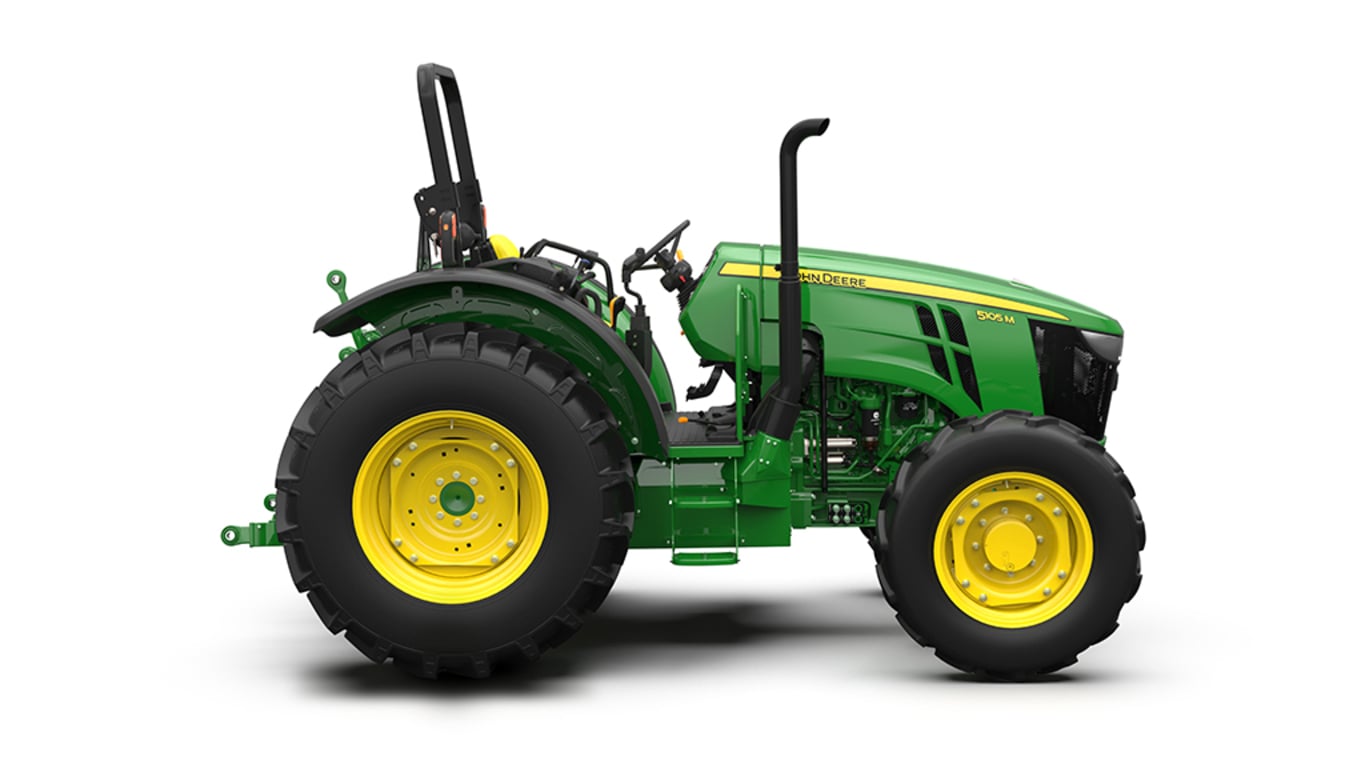

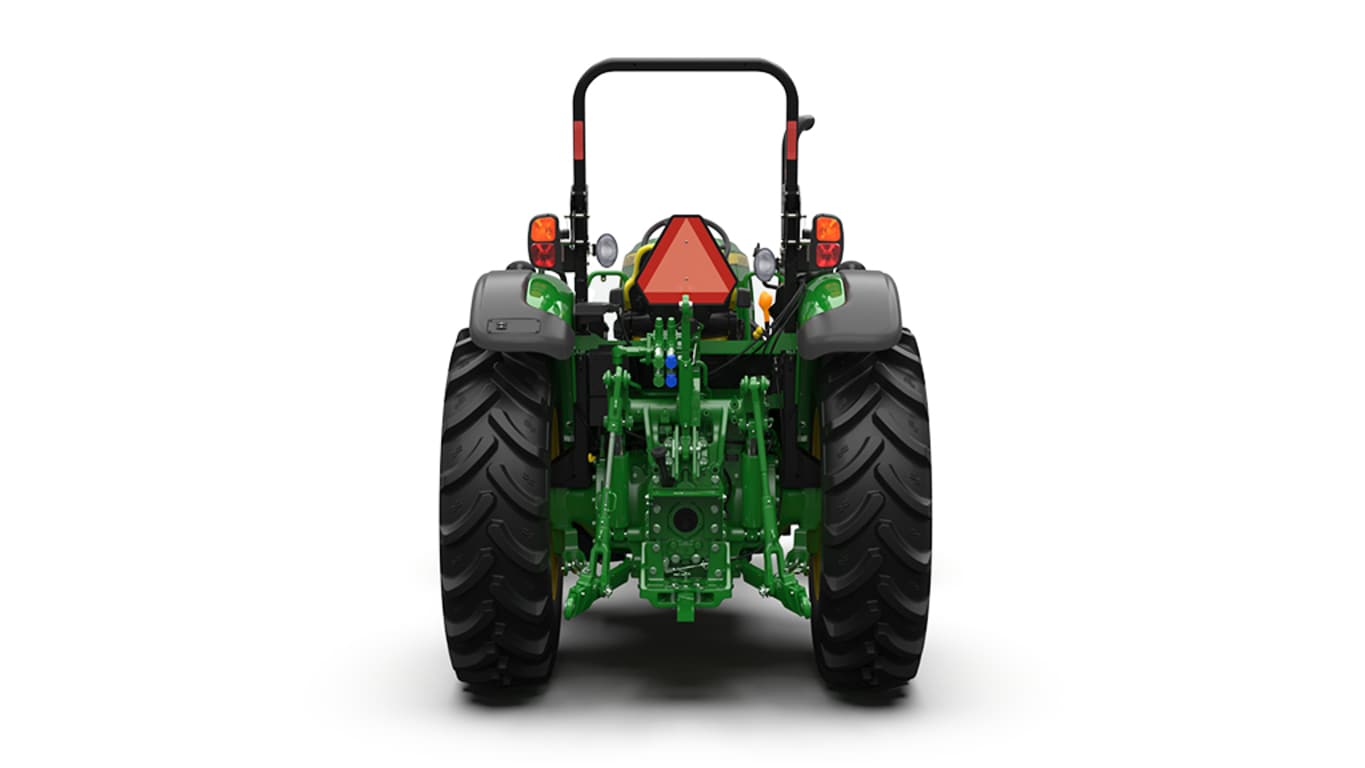

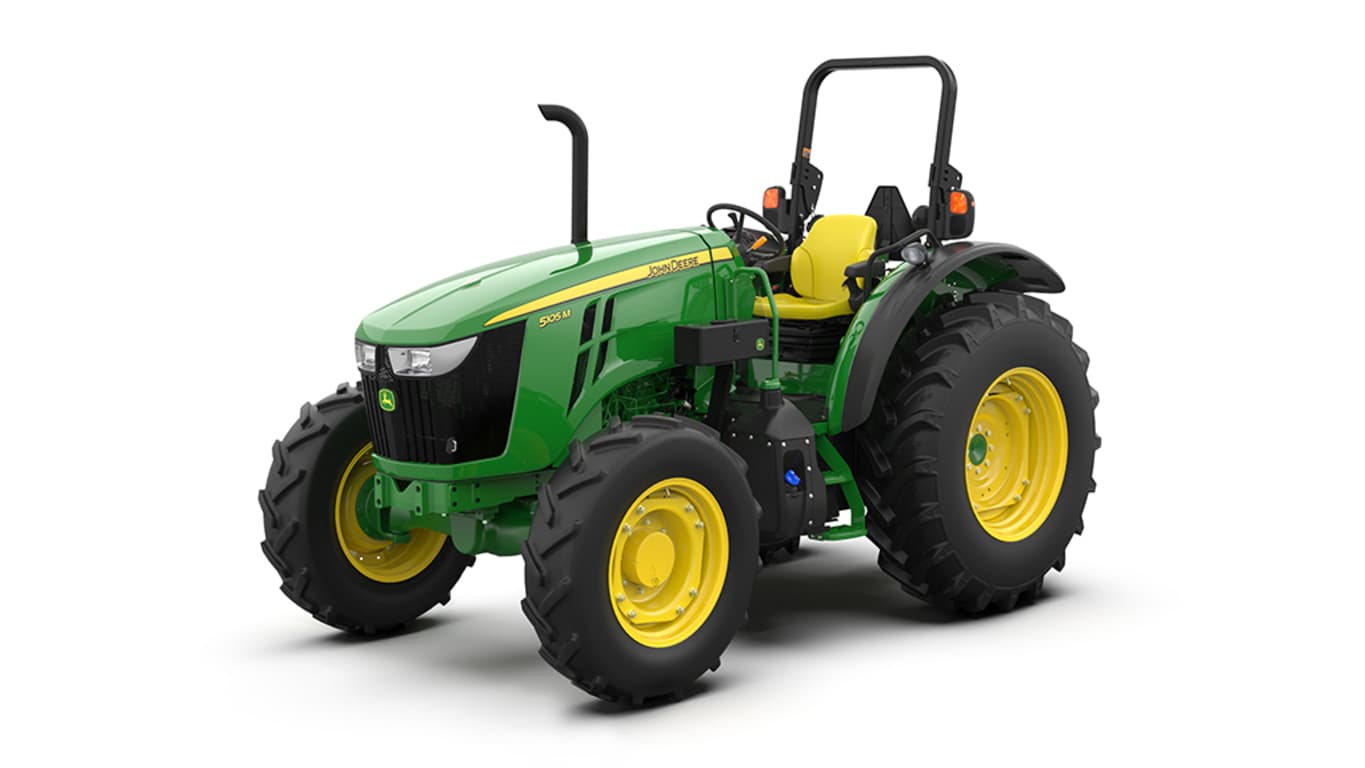

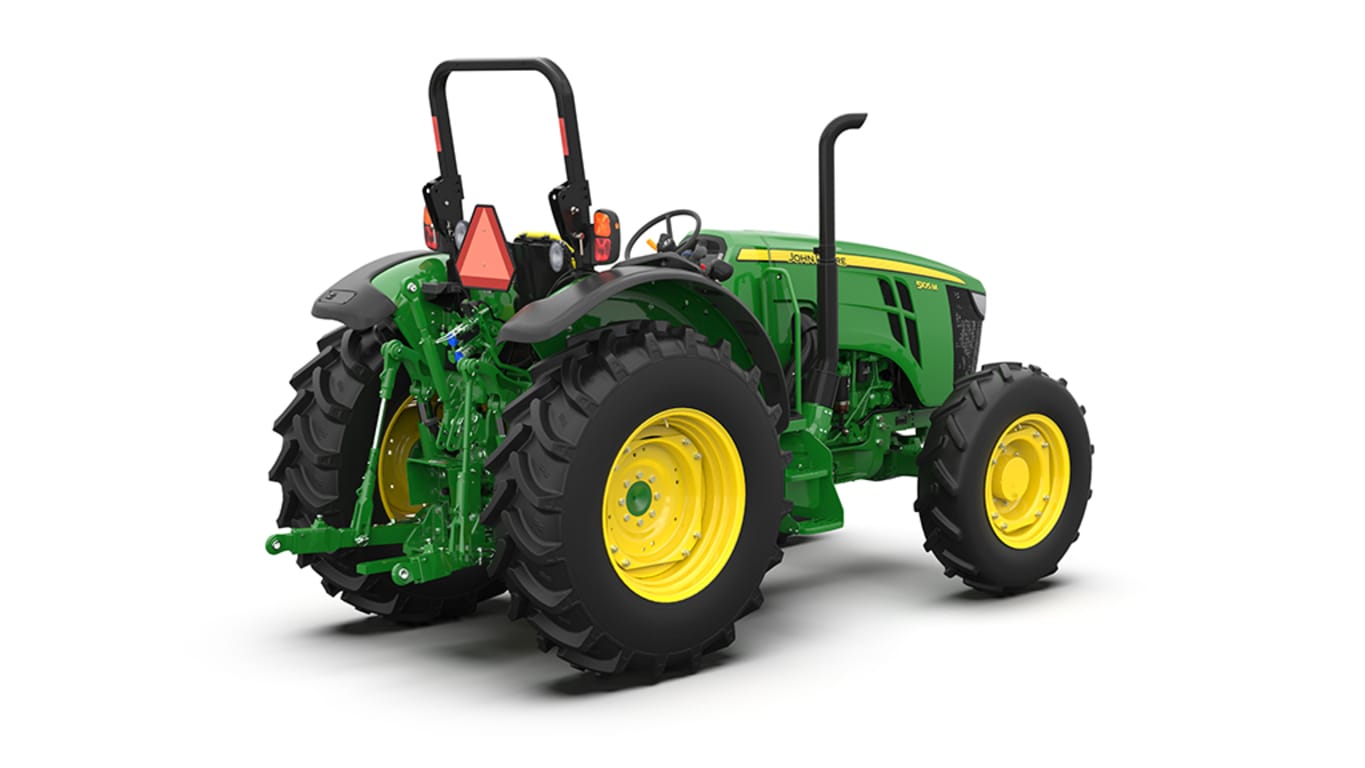

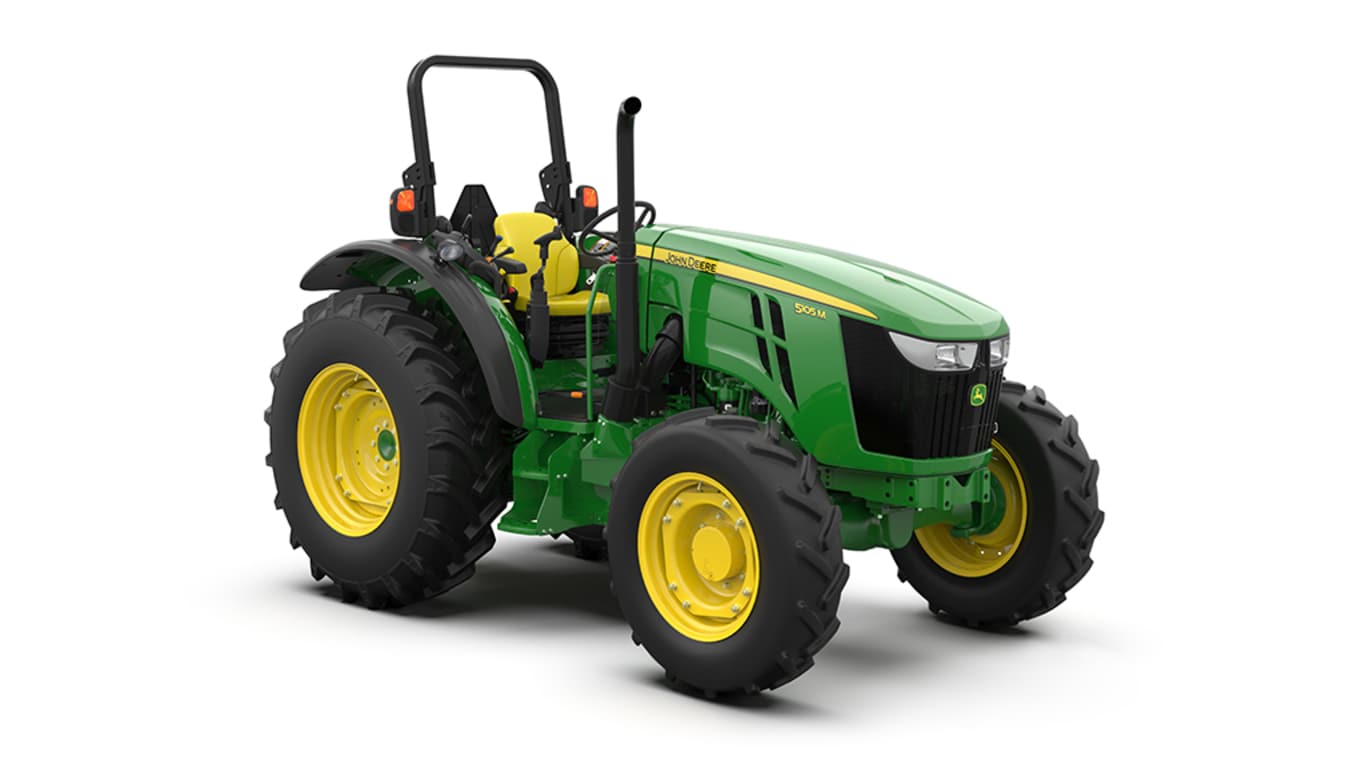

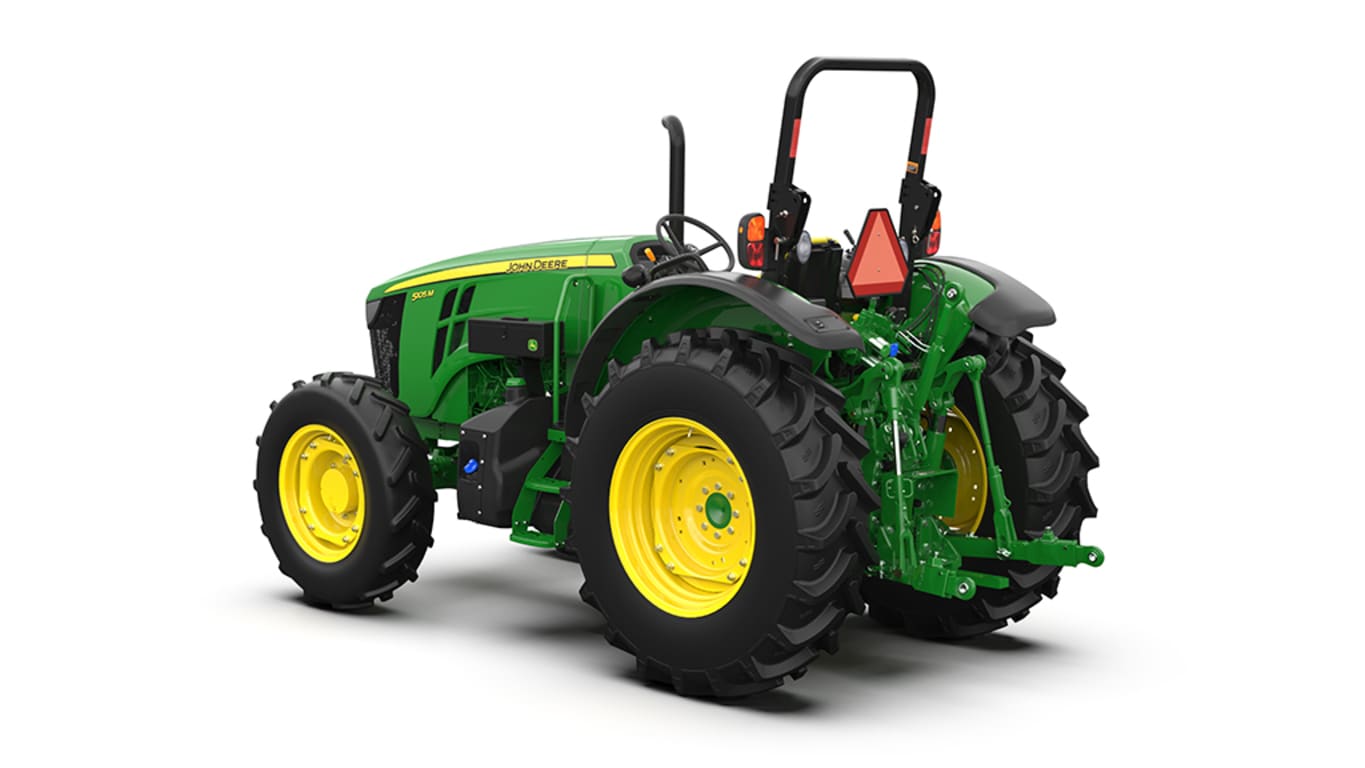

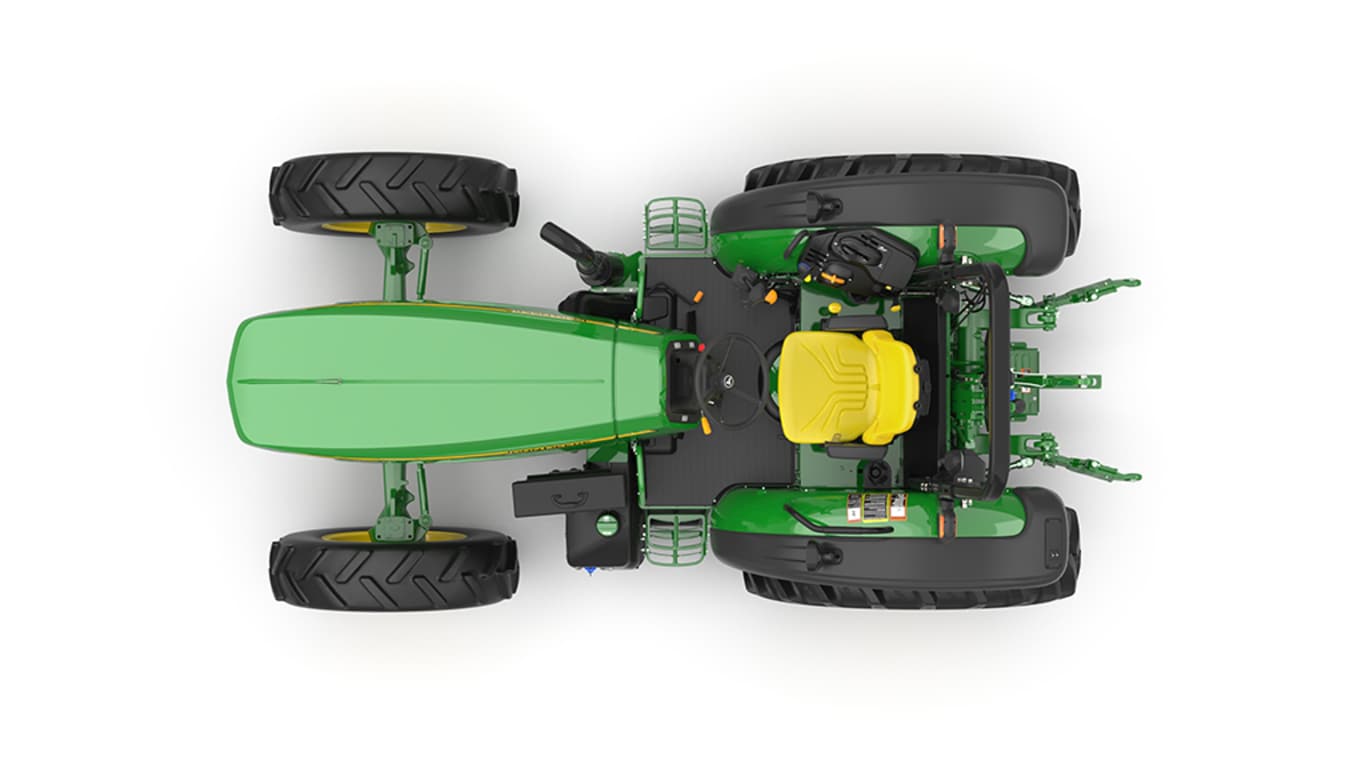

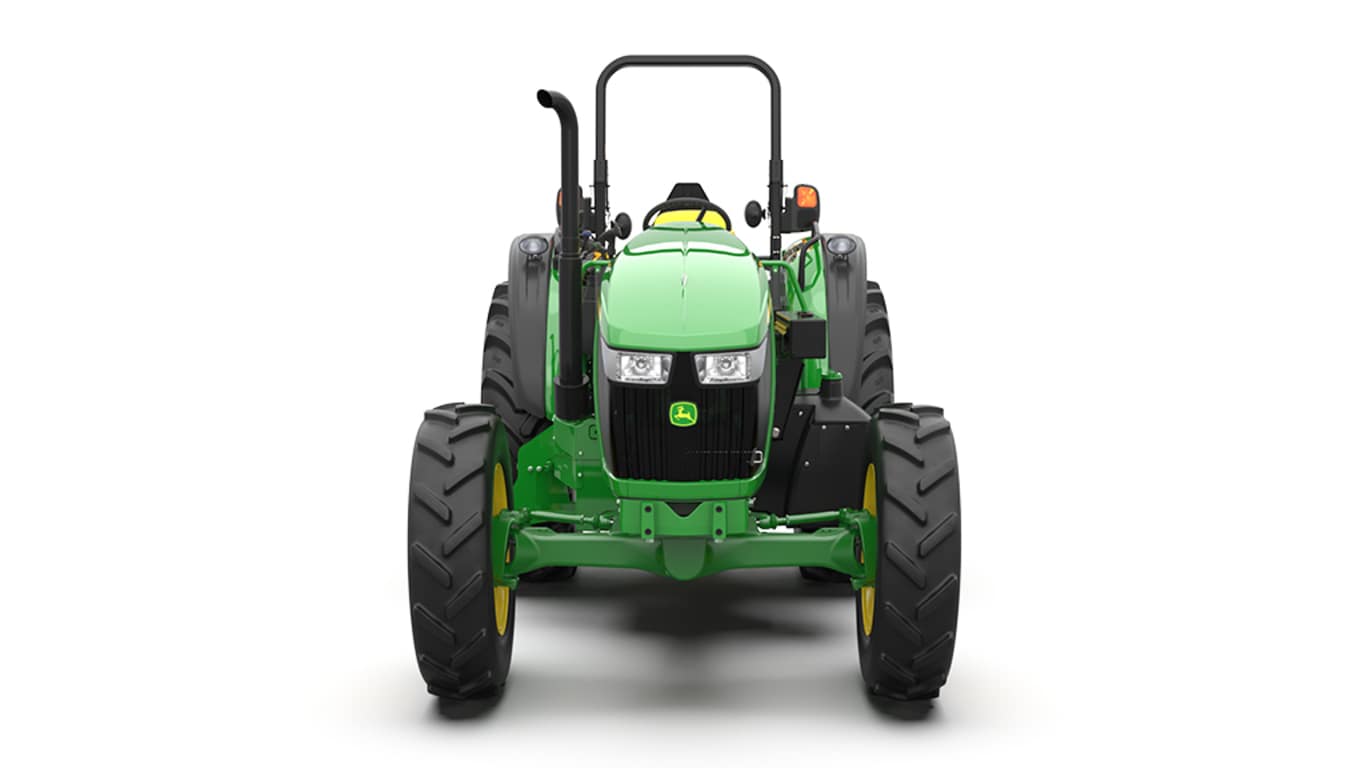

5105M
5105M Utility Tractor , 5 Series Utility Tractors, Agriculture
  • PowrReverser™, PowrQuad™ PLUS or Powr8™ transmission options
  • Choose climate-controlled cab or open station
  • Hitch lift capacity starting at 5,150 lb (2,336 kg) and optional up to 7,860 lb (3,565 kg)
Request Information
Adjust to job with flexible wheel spacing
Additional flexibility with bar axle on 5M adds to rear axle offerings Additional flexibility with bar axle on 5M adds to rear axle offerings
Overview

Whether fitting down a row spacing, straddling a windrow, or a wide stance for stability mowing on hills – there is a 5M configuration to meet operator’s needs. The rack-and-pinion (better known as ‘bar’) axle joins the existing flange axle offerings of the 5M adding nearly 25.4 cm (10 in.) of tread width on rear axles and brings additional options such as cast wheels that unlock the compatibility for duals. This increased flexibility all comes in the same versatile 5M tractor.

Benefits
  • 134.874 cm (53.1 in.) to 205.486 cm (80.9 in.) wheel tread range on flange axle configurations
  • Up to 228.6 cm (90 in.) wheel tread range on bar axle configuration
  • Find the fit with fixed flange axle or fine-tune with adjustable bar axle offerings
  • Increased ballast options with cast wheel offerings for bar axles
  • Increase flotation with duals compatible with cast wheels on bar axles

Both the bar and flange axles are proven designs used on tractors for years, but this is the first time that bar axles have been brought to the 5-Series lineup.

Bar axle shown with steel wheelt Bar axle shown with steel wheelt
Flange axle with steel wheel Flange axle with steel wheel

Consult the operator’s manual for specific wheel spacing configurations by tire offering.

Premium cab for the ultimate operating experience
5M Tractor Premium Cab with panorama roof 5M Tractor Premium Cab with panorama roof
Overview

Experience ultimate operator experience in comfort and convenience by upgrading to the Premium Cab on 5M tractors. Upgrading to the Premium Cab unlocks a fixed panorama roof ideal for loader work.

Benefits
  • Improve upward visibility by 80 percent vs standard cab for easier bale stacking, pallet stacking, and dumping loads into walled trailers with the panorama roof
  • Additional storage space with the rear floor mat behind the seat
  • Excellent visibility to rear operations with the rearview mirror
  • Shield the operator from the sun with an easy-to-use front sunshade

Features

Standard Cab

Premium Panorama Roof Cab

Deluxe isolated cab with flat floor

X

X

Tilt and telescopic steering column

X

X

Convenience power outlet

X

X

Air conditioning and heater

X

X

Speedometer

X

X

Beverage Holder

X

X

Sun visor for front window

X

X

Two-speed front windshield wiper and washer

X

X

Two front/two rear roof-mounted worklights

X

X

Two front/two rear roof-mounted warning lights

X

X

Two fender-mounted taillights

X

X

120Amp Alternator

X

X

Convenience power outlet

X

X

Monitor mounting bosses (two Sets)

X

X

Swing-out rear window with two removable rear plugs for monitor

X

X

Right-hand console light

X

X

Radio preparation (with speakers, wiring)

X

X

Rear window grab handle

X

X

Bluetooth® ready

X

X

Requires option code 3025 (Deluxe cornerpost exhaust).

X

X

Fixed panorama roof with shade

-

X

Radio (Bluetooth® Capable)

-

X

Rear window wiper

Option

X

Radio antenna

-

X

Requires option code 4030 (ElectroHydraulic (EH) rear hitch)

-

X

Requires option code 6040 (MFWD)

-

X





Bluetooth is a trademark of Bluetooth SIG, Inc.

Heavy-duty 3-point hitch lift capacity for implement versatility
5M Tractor 3-point hitch 5M Tractor 3-point hitch
Overview

Heavy-duty 3-point hitch provides lift capacity and adjustability for implement versatility with Category 2 implements or adaptable to Category 1. Precisely raise and lower heavy implements such as planters, sprayers, and field cultivators, using the rockshaft control lever. The operator can also adjust the speed at which an implement is lowered by adjusting the rockshaft rate of drop.

Benefits
  • Convenience hooking up implements with telescoping draft links, adjustable sway bars, and interchangeable hitch balls with the choice of either mechanical or electrohydraulic controls.
  • Consistency when lowering hitch with depth stop on both mechanical and electrohydraulic hitch controls - each time the position control lever is pushed forward, it stops where the depth stop has been positioned. Useful when preparing a seedbed.
  • Compatible with implements needed to perform multiple jobs. Increased lift capacity is available with optional larger cylinders. See Specifications for lift capacity by model.
  • Convenience when leveling implements with right lift link being able to adjust without tools - lift links can be adjusted for lateral float to allow implements with gauge wheels or skids to follow the ground contour
Additional details

Mechanical or electrohydraulic hitch control operation

Raise and lower rear implements with precision with either the mechanical or electrohydraulic (EH) hitch control. The operator can also adjust the speed at which an implement is lowered by adjusting the rockshaft rate of drop.


The mechanical hitch control is paired with the tractors equipped with a PowrReverser™ transmission while the EH hitch control is paired with units equipped with a PowrQuad™ PLUS or Powr8™ transmission. Both control types enable the operator to adjust the speed at which an implement can be lowered by adjusting the rockshaft rate of drop. In addition to this feature, the EH hitch control adds repeatable movements by enabling the operator to set both an upper and lower limit.



The adjustable depth stop (found on both control types) provides consistency when lowering the hitch. Each time the position control lever is pushed forward, it stops where the depth stop has been positioned. This feature is a value to anyone who desires a consistent, level ground, like when preparing a seedbed.

The center link can be set in one of three positions to accurately set the implement position and draft sensing. The right lift link is adjustable without tools for added convenience when leveling implements.

Optional larger cylinders:

Transmission

Cylinder diameter

Lift capacity at 610-mm (24-in) behind lift point

PowrReverser™ transmission models

Two 65-mm (2.56-in.) cylinders







See specifications for lift capacity.

PowrReverser models with optional high-capacity hitch

One 65-mm (2.56-in.) cylinder
One 75-mm (2.95-in.) cylinder

PowrQuad PLUS or Powr8 transmission models

Two 75-mm (2.95-in.) cylinders

PowrQuad PLUS or Powr8 models with optional high-capacity hitch

Two 80-mm (3.15-in.) cylinders

Rear fender hitch controls
5M rear fender hitch controls 5M rear fender hitch controls

Operators do not need to carry a tool to adjust the rear hitch. Operators can also raise and lower the 3-point hitch from outside of the tractor with the conveniently located rear fender hitch controls.

Rear quick hitch
Rear quick hitch Rear quick hitch
Sideview of quick hitch shown on 5M Sideview of quick hitch shown on 5M

An updated three-point quick hitch is offered on the 5M Tractors.

  • This updated design is a break from the existing welded quick hitch as the frame is cast.
  • The curved design eliminates the potential for contact with the rear fender and extensions.
  • The quick hitch is available as a field kit option.
Sway bars
5M Tractor sway bars 5M Tractor sway bars

Adjustable sway bars and telescoping draft links can be easily adjusted to adapt to a wide variety of implements. The right lift link also adjusts without tools for added convenience when leveling implements.

Focus on the job while AutoTrac™ guidance keeps on track
Mowing with AutoTrac™ Mowing with AutoTrac™
Spraying with AutoTrac™ Basic Spraying with AutoTrac™ Basic

Manage in-field efficiency and reduce operator fatigue by engaging AutoTrac on your 5M or 5ML tractor. AutoTrac provides operators with a hands-free guidance solution with accuracy on a variety of field conditions. Reduce operator fatigue without the need for an additional display with AutoTrac Basic which provides straight line AutoTrac guidance in the digital dash display.



Enable the following benefits by equipping your tractor with AutoTrac, a 4240 Universal Display and a StarFire™ receiver:



  • Simple and user friendly
  • Reduces operator fatigue and error
  • Saves time by eliminating implement overlap
  • Optimizes machine efficiency
  • Increase data driven decisions by documenting jobs



Potential jobs to use with AutoTrac:

  • Cutting hay
  • Over seeding
  • Cultivation
  • Disking
  • Spraying
  • Mowing
  • Planting
  • Fertilizer applications
  • Pulling in irrigation pipe
  • Cutting ditches
  • Transplanting
  • Harvesting



Learn more about the benefits of 4240 universal display and Gen5 universal display.

Learn more about the benefits of a StarFire 6000 receiver and StarFire 7000 receiver.

Take charge with PowrQuad™ PLUS and Powr8™ transmissions
Integrated declutch and gear buttons on single transmission control lever Integrated declutch and gear buttons on single transmission control lever
Overview

A more productive transmission in a mid-spec utility tractor is found with PowrQuad PLUS and Powr8 transmissions which builds on the clutchless hydraulic shifting between forward and reverse of the PowrReverser™ transmissions with simple push-button gear shifting.

Benefits
  • Ergonomically placed transmission control lever allows the operator to change gears and ranges using one lever
  • Improved efficiencies by reducing steps to change gears by 35 percent
  • Effortlessly switch directions with a small finger motion using the electrohydraulic fingertip directional lever
  • Ideal for loader work and any applications that require frequent directional changes in tight spaces
  • Eliminates wear on the clutch by automating gear shifts at the push of a button
Additional details

The PowrQuad™ transmission can be ordered with  different options to meet customer needs:



PowrQuad™ PLUS 16F/16R

Powr8™ 32F/16R

Powr8™ 32F/16R with creeper

5M Cab

Option

Option

Option

5ML Open Station

Option on 5105ML and 5120ML Base on 5130ML

Option on 5105ML and 5120ML Base on 5130ML

Not Applicable

5ML Cab

Base

Not Applicable

Option



PowrQuad/Powr8 transmissions include:

  • Wet clutch
  • Ergonomically mounted transmission lever controlling both gear and range changes
  • Declutch button on the range lever for range shifting optionally without use of foot clutch
  • Left-hand reverser for seamless directional changes
  • Constant-mesh, helical-cut gears
  • Pressure-lubricated top shaft
  • Positive park pawl
  • Three-speed PTO
  • Neutral start switch
Integrated declutch button on transmission control lever Integrated declutch button on transmission control lever
Integrated gear buttons on transmission control lever Integrated gear buttons on transmission control lever

Ranges on the transmission control can be selected by moving the controller in an H pattern. The lever selects ranges A, B, C, or D. Ranges are fully synchronized. That means when upshifting, operators can move between any range A-D without stopping the tractor.



Two buttons allow operators to gear up (rabbit) or gear down (turtle) within a range. A PowrQuad has 4 gear speeds per range while a Powr8 has 8 per forward range which is precisely how they got their names.

Increase speed control with PowrReverser™ Hi-Lo 32F/16R transmission
Hi-Lo selector on gear lever Hi-Lo selector on gear lever
Overview

For operators requiring more field speeds to achieve the most precise operating ranges, as well as for quickly moving from task to task with transport speeds of up to 40.23 km/h (25 mph), the PowrReverser™ Hi-Lo 32F/16R transmission is the ideal choice. This transmission provides 32F/16R speeds for the ultimate in speed selection.

Benefits
  • Effortlessly switch directions with a small finger motion using the electrohydraulic fingertip directional lever
    • Frees the right hand to operate other tractor controls, such as the loader, rear implements, or throttle, as the directional lever allows the operator to steer and shift direction with the left hand
    • The control is located on the left side of the instrument console and selects forward, reverse, and neutral positions
  • Clutch-less hydraulic shifting between forward and reverse
  • Convenient push-button controls actuate the electrohydraulic hi-lo selector providing an extra 20% increase/decrease in speed for each forward gear
  • Lower engine vibration, reduced noise, less wear and tear on the engine, reduced fuel consumption, and increased operator comfort from the standard economy PTO (E-PTO)
Additional details

32F/16R transmission includes:

  • Hydraulic wet clutches (forward and reverse)
    • Maximize durability and outlast the life of any dry clutch
    • When tractors are run by multiple operators with a variety of experience levels, a wet clutch is the best way to maintain transmission integrity and performance while decreasing clutch replacement costs
  • Platform-mounted shift levers (four gears, four ranges)
    • Two platform-mounted levers offer easy and comfortable shifting for a pleasant operator experience
    • The gear-shift lever is easy to reach, and the less-used range lever is shorter. Unique knobs make it easy to distinguish between the two
  • Left-hand reverser
  • Constant-mesh helical-cut gears
    • Provide quieter operation and excellent reliability while the pressure-lubricated top shaft adds to the transmission durability
    • Fully enclosed, rigid shift linkages for short throw and crisp shifts enable all operators to clearly know in what range and gear they are operating
  • Pressure-lubricated top shaft
  • Positive park pawl: provides positive park and eliminates the need for a hand brake
  • Neutral start switch



The gear lever selects one of four speeds, all synchronized shifts for on-the-go shifting with the use of the clutch. This same lever is where the hi-lo control buttons are located which provide a single shift up/down in speed within each forward range. The rear lever selects ranges A, B, C, or D. All ranges are fully synchronized which means, when shifting, operators can move between any range A-D without stopping the tractor.



The hi-lo feature benefits operators who frequently transport their tractors from field to field or find themselves in bog-down situations during rear power take-off (PTO) work such as baling in variable sized windrows. Customers can push the rabbit button (high) without having to depress the clutch to get a 20 percent increase in speed. They can also push the turtle button (low) to get a 20 percent decrease in speed, similar to downshifting or engine braking without having to grab another gear.

Shuttle control knob Shuttle control knob

The 32F/16R transmission includes the infinitely variable shuttle control feature allowing fine-tuning of the speed of directional changes to the operator's preference or application demands. This dial adjusts the aggressiveness of the tractor’s directional change. Some prefer a quicker more precise change, whereas other operators are more comfortable with a slow roll out before moving in the opposite direction. This feature can be significant for precision work with pallet forks or changing to bale stacking applications.



The PowrReverser™ has a built-in engagement override valve for additional safety. This valve requires the clutch pedal to be depressed one time after each engine start before the transmission will begin to operate normally, giving the operator another opportunity to put all focus on the tractor.



NOTE: A neutral start switch requires the directional lever be in the neutral position to start the engine. NOTE: See PTO detailed feature for more information on E-PTO.



PowrReverser™ 16F/16R transmission
Overview

Ample speeds and ease of operation for demanding applications with the 16F/16R PowrReverser, providing 16 forward speeds and 16 reverse speeds. This transmission comes standard with a dual speed 540/540 Economy power take-off (PTO), and it is ideal for applications requiring frequent directional changes, such as loader work.

Benefits
  • Effortlessly switch directions with a small finger motion using the electrohydraulic fingertip directional lever
    • Frees the right hand to operate other tractor controls, such as the loader, rear implements, or throttle, as the directional lever allows the operator to steer and shift direction with the left hand
  • Ideal for rear blading and any applications that require frequent directional changes in tight spaces
  • Clutch-less hydraulic shifting between forward and reverse
  • Lower engine vibration, reduced noise, less wear and tear on the engine, reduced fuel consumption, and increased operator comfort from the standard economy PTO (E-PTO)
Additional details

16F/16R transmission includes:

  • Hydraulic wet clutches (forward and reverse)
    • Maximize durability and outlast the life of any dry clutch
    • When tractors are run by multiple operators with a variety of experience levels, a wet clutch is the best way to maintain transmission integrity and performance while decreasing clutch replacement costs
  • Platform-mounted shift levers (four ranges, four gears)
    • Two platform-mounted levers offer easy and comfortable shifting for a pleasant operator experience
    • The gear-shift lever is easy to reach, and the less-used range lever is shorter. Unique knobs make it easy to distinguish between the two
  • Left-hand reverser
    • The control is located on the left side of the steering column and selects forward, reverse, and neutral positions
  • Constant-mesh helical-cut gears
    • Provide quieter operation and excellent reliability while the pressure-lubricated top shaft adds to the transmission durability
    • Fully enclosed, rigid shift linkages for short throw and crisp shifts enable all operators to clearly know in what range and gear they are operating
  • Pressure-lubricated top shaft
  • Positive park pawl: provides positive park and eliminates the need for a hand brake
  • Neutral start switch
Gear and range shift levers (cab)t Gear and range shift levers (cab)t
Gear shift lever open operator’s station (OOS) Gear shift lever open operator’s station (OOS)
Range shift lever (OOS) Range shift lever (OOS)

The forward lever selects one of four speeds, all synchronized shifts for on-the-go shifting with the use of the clutch. The rear lever selects ranges A, B, C, or D. All ranges are fully synchronized. When upshifting, operators can move between ranges without stopping the tractor providing convenience for on-the-go shifting from field to transport.

Left-hand reverser lever Left-hand reverser lever

NOTE: A neutral start switch requires the directional lever be in the neutral position to start the engine.

Integrated declutch button on gear shifter Integrated declutch button on gear shifter

NOTE: The PowrReverser transmission is not available for the 5130M or 5130ML tractors.



The PowrReverser has a built-in engagement override valve for additional safety. This valve requires the clutch pedal to be depressed one time after each engine start before the transmission will begin to operate normally, giving the operator another opportunity to put all focus on the tractor.

See the PTO functional area for more information on E-PTO.

Creeper lever on 5MH only Creeper lever on 5MH only

The creeper gears are accessible by engaging the creeper lever into rabbit or turtle position. This provides 2 additional slow working ranges perfect for bedded crops.



See the PTO functional area for more information on E-PTO.

Power bulge and torque reserve pull through the tough spots
Power bulge and torque curve Power bulge and torque curve
Overview

When the tractor is under load, power bulge and torque rise work together to get through the tough spots without having to downshift.



As rpm drops, the only way to maintain or increase horsepower is to provide additional torque. Whether bailing wet hay or lifting a heavy load, the additional power allows the tractor to continue performing the job without stopping. The rated economy power take-off (EPTO) speed occurs near the peak torque rise providing power when operator need it in PTO applications.

Benefits
  • Increased productivity in demanding conditions with more power when operator need it
  • More lugging ability for quicker power recovery
  • Additional torque provides force to remain horsepower as engine rpm drops below rated speed
Additional Details

Horsepower and torque are mathematically related.

#

5M 4-Cylinder tractors provide 4% power bulge while 5E 4-Cylinder tractors provide 2% power bulge. Note: There is no power bulge on 3-Cylinder tractors (5E 3-Cylinder or 5075M).



5E 4-Cylinder Power and Torque Curves

5E power curve summary 5E power curve summary
5E torque curve summary 5E torque curve summary
5M Power and Torque Curves
5M power curve summary 5M power curve summary
5M torque curve summary 5M torque curve summary
Automotive-style light-emitting diode (LED) instrument cluster
Instrument cluster Instrument cluster
Power take-off (PTO) target bars Power take-off (PTO) target bars
Overview

Operators can view information in a crisp, vibrant, and useful array on the tractor instrument cluster.

Benefits
  • Clear and bright indicators, warning lights, and gauges
  • Provides operators with crucial onboard diagnostics through the roll-mode function
  • Visibility of engine hours, ground speed, Hi-Lo indicator, forward, neutral, and reverse all at the same time
  • Light-out indicator for trailer light, turn light, and hazard light bulbs
  • Clearly presented PTO target bars to indicate the correct PTO speeds when operating the PTO
Additional details

There are daytime and nighttime modes which are based on the position of the light switch. The mode adjusts the backlight levels of the display for optimum visibility.

Heavy base tractor weight for stability
Tractor weight package Tractor weight package
Overview

Keep implements in the ground with more down force that comes from a heavy tractor. The compactness of the 5ML Series regarding wheelbase, weight, and height makes this tractor suited for a variety of applications and is the perfect choice for all types of operations.

Benefits
  • Improved traction and performance no matter the ground condition
  • Ability to power through tough jobs with heavy and durable cast steel
  • Better stability when performing loader work
  • Transport full bucket loads faster with a stronger and more stable base
  • Increased stability when working on hills
Additional details

See specifications for machine weight.

EPA Final Tier 4 (FT4) compliant engines with maximum fluid efficiency
PowerTech™ PWL FT4 technology PowerTech™ PWL FT4 technology
Overview

All John Deere engines are designed and engineered specifically for agricultural applications. The engine powering 5 Series tractors is EPA certified Tier Level 4.

Benefits
  • Efficient and cost-effective operation
  • Allows for greater productivity and ease of operation
  • Responsive power reducing the need to downshift the transmission
Additional details

The U.S. EPA and Environment Canada requires all off-road diesel engines with 18.6 kW (25 hp) or more to meet stringent FT4 emissions regulations.



PowerTech EWL/EWR/EWX/PWL/PWS/PSS/PVS engine identification

NOTE: find a tractor’s 3 character engine identification by referencing the ‘engine description’ in specifications.



 EWL



Aftertreatment

  • X – DOC and DPF
  • S - Exhaust filter and SCR
  • R – DOC and EGR
  • L - DOC and SCR

Turbocharger

  • V - Variable geometry turbocharger (VGT)
  • S - Series turbochargers
  • W - Wastegate turbocharger

Technology

  • P - PowerTech Plus
  • E - PowerTech E



Several defining features on 5 Series tractors maximize the performance and reliability of the emissions package. A completely shielded DOC/DPF/SCR not only protects essential components from damage, it also keeps out dirt and debris. The well-packaged and tightly organized circulation system means there is more room to work around the tractor.

Key components of the emissions system
Shielded for protection Shielded for protection

Diesel oxidation catalyst (DOC), diesel particulate filter (DPF), and cooled exhaust gas recirculation (EGR)

Deere has chosen to utilize an exhaust filter (DOC) and/or diesel particulate filter (DPF) to reduce particulate material so the engine can operate at a level which produces less nitrogen oxide (NOx). With less NOx created, it requires less DEF to treat or no DEF for 3-cylinder models. The result is improved total fluid economy (diesel and DEF). Some applications also reduce NOx using cooled exhaust gas recirculation (EGR) that allows a controlled amount of exhaust gas to be returned to the engine leading to lower combustion temperature for a cleaner, more efficient exhaust.


The engine is programmed to aggressively respond to changes in power needs, which can temporarily increase particulate matter. Since the exhaust filter removes particulate matter instead of the engine, the engine is left free to do what it is designed to do – deliver all of the power, torque, plus transient response needed at the exact moment needed.



Diesel exhaust fluid (DEF)

DEF is an ISO 22241 standard aqueous urea solution consisting of 32.5 percent urea and has a freezing point of -11° C (12° F). A DEF tank keeps the operator in the field longer even when the temperatures drop below freezing. The DEF tank header is integrated with a temperature sensor and plumbed engine coolant lines are used to promote thawing and prevent freezing in the tank during operation.

DEF tank DEF tank

Mounted near the DEF tank, the engine control unit (ECU)-controlled supply module draws DEF from the storage tank and provides a pressurized flow to the dosing module. When the ignition key is off, the supply module pump will reverse direction to return any accumulated fluid back to the tank. The supply module is also fitted with a replaceable filter to prevent contaminants from entering the dosing lines. Both the supply module and dosing lines are electrically heated and controlled by the ECU to determine when diesel exhaust fluid dosing can begin.



Selective catalytic reduction (SCR)

SCR is the final step in the process of reducing engine exhaust emissions to meet FT4 regulations. This process allows for the flow of engine exhaust dosed with DEF to pass from the SCR, reducing the presence of NOx converting it from NH3 to N2 (nitrogen gas) and H20 (water). The SCR canister is a welded, stainless assembly which requires no service. It also serves as a thermal insulator and provides additional noise reduction.



For more information regarding EPA regulations and the technology behind John Deere Integrated Emissions Control systems, please visit the following link: http://www.deere.com/wps/dcom/en_US/campaigns/ag_turf/emissions/final_tier_4.page or https://www.deere.ca/en/engines-and-drivetrain/final-tier-4/

Key Specs
Engine description
John Deere PowerTech™ 4045 EWL
Engine displacement
4 cylinder: 4.5 L
276 cu in.
Rated engine power
At 2200 rpm: 77.4 kW
105 hp
Maximum engine power
80.6 kW
108 hp
Rated PTO power (hp SAE)
At 2100 rpm: 66.2 kW
90 hp
Transmission type
Standard: PowrReverser™ 16F/16R
Optional: PowrReverser™ Hi-Lo 32F/16R
PowrQuad™ PLUS 16F/16R
Powr8™ 32F/16R
Powr8™ 32F/16R with creeper
Hydraulic pump rated output
PowrReverser™: 94 L/min
24.7 gpm
PowrQuad™ PLUS/Powr8™: 97 L/min
25.6 gpm
Rear hitch category (SAE designation)
Category 2; convertible to 1
Engine specifications
Description
John Deere PowerTech™ 4045 EWL
Engine type
4045HLV82
Engine family
NJDXL04.5317
Rated speed
2200 rpm
Aspiration
Turbocharged/air-to-air aftercooled
Cylinders liners
Wet sleeved
Emission level
Final Tier 4
After treatment type
DOC/SCR
Displacement
4 cylinder: 4.5 L
276 cu in.
Engine performance
Rated power
At 2200 rpm: 77.4 kW
105 hp
Rated PTO power (hp SAE)
At 2100 rpm per SAE: 66.2 kW
90 hp
Power boost
At 1900 rpm: 4 percent
Maximum engine power
80.6 kW
108.0 hp
Engine peak torque
At 1600 rpm: 437 Nm
322 lb-ft
PTO torque rise
At 1600 rpm: 30 percent
Transmission
Type
Standard: PowrReverser™ 16F/16R
Optional: PowrReverser™ Hi-Lo 32F/16R
PowrQuad™ PLUS 16F/16R
Powr8™ 32F/16R
Powr8™ 32F/16R with creeper
Reverser
Left hand, electrohydraulic
Clutch; wet/dry
Wet
Creeper
Powr8™ 32F/16R with creeper
Hydraulic system
Type
Open center
Pump rated output
PowrReverser™: 94 L/min
24.7 gpm
PowrQuad™ PLUS/Powr8™: 97 L/min
25.6 gpm
Available flow at a single rear SCV
PowrReverser™: 70 L/min
18.4 gpm
PowrQuad™ PLUS/Powr8™: 73 L/min
19.3 gpm
Number of rear selective control valves (SCVs)
Standard: Two
Optional: Three
Number of mid selective control valves (SCVs)
Standard: Two
Optional: Up to Three
Joystick SCV control
Mechanical
Rear hitch
Hitch draft control load sense type
Mechanical or Electrohydraulic
Remote control valves available
Standard: Two
Optional: Three
Hitch category (SAE designation)
Category 2; convertible to 1
Maximum lift capacity behind lift points
Standard for PowrReverser™: 2336 kg
5150 lb
Optional for PowrReverser™: 2699 kg
5950 lb
Standard for PowrQuad™ PLUS/Powr8™: 3161 kg
6970 lb
Optional for PowrQuad™ PLUS/Powr8™: 3565 kg
7860 lb
Sensing type
Lower link
Rear axle differential lock
Electrohydraulic
Drawbar
Drawbar category
Category 2
Maximum vertical load
Road/field use (250-mm extended): 1450 kg
3197 lb
Field use (350-mm extended): 1200 kg
2646 lb
Field use (400-mm extended): 1200 kg
2646 lb
Rear power take-off (PTO)
Type
Independent, 34.9 mm (1.375 in)
Standard: 540/540 Economy (6 spline)
Optional: 540/540E (6 spline) and 1000 rpm (21 spline) reversible shaft
Engine rpm (at rated PTO speeds)
540 at 2100 rpm
540E at 1645 rpm
1000 at 2100 rpm
PTO actuation
Electrohydraulic
Front hitch
Category
Category 2
Standard lift capacity
1931 kg
4257 lb
Front power take-off (PTO)
1000 rpm (21 spline)
34.9 mm (1.375 in.)
PTO speed
1000 at 2200 rpm
Rear axle
Type
Standard: Flange
Optional: Rack-and-pinion (Bar)
Final drive type
Inboard planetary
Differential controls
Electrohydraulic
Brakes, type and control
Hydraulic wet disc
Front axle
Type
Standard: Mechanical Front Wheel Drive (MFWD)
Optional: Two-Wheel Drive (2WD)
Tires
Rear
2WD: 18.4R30 (460/85R30) R1W Radial
MFWD: 18.4R30 (460/85R30) R1W Radial
Wheel tread range
2WD: front: 1520-2020 mm
59.8-79.5 in.
MFWD: front: 1299-1997 mm
51.1-78.6 in.
rear: 1350-2286 mm
53.1-90 in.
Turning radius with brakes
2WD: 3.67 m
12.04 ft
MFWD: 3.85 m
12.6 ft
Turning radius without brakes
2WD: 3.85 m
12.6 ft
MFWD: 4.0 m
13.1 ft
Tracks
Steering
s
s
T
T
Brakes
Electrical system
Alternator size
OOS: 90 amp
Cab: 120 amp
ISOBUS/GreenStar™ Ready: 200 amp
Battery options
12 V
Working lights
Standard: Halogen
Optional: LED
Type of bulb in headlight (Halogen, Zenon, LED)
Standard: Halogen
Optional: LED
Type of bulb in beacon (Halogen, Zenon, LED)
Optional: LED
Operator station
Rollover protective structure, OOS
Rigid - foldable - telescopic
Foldable, two-post
Platform - flat/straddle
Flat
Gearshift location - console/floor
Floor
Seat
Standard: Mechanical
Optional: Air Ride or Premium Air Ride
Instructional seat
Optional
Display
PowrReverser™: Automotive-style light-emitting diode (LED) instrument cluster
PowrQuad™ PLUS/Powr8™: Digital Dash Display with three liquid crystal displays (LCDs)
Radio
Optional
dB(A) rating
78 dBA
Dimensions
Wheelbase
2WD and MFWD: 2350 mm
92.5 in.
Overall length
OOS: 4081 mm
160 in.
Cab: 4089 mm
161 in.
Approximate shipping weight, Open;Cab
2WD OOS: 3700 kg
8140 lb
2WD Cab: 3900 kg
8580 lb
MFWD OOS: 3975 kg
8765 lb
MFWD Cab: 4175 kg
9185 lb
Weight
Capacities
Fuel tank
Open: 142.7 L
37.7 U.S. gal.
Cab: 165.4 L
43.7 U.S. gal.
Diesel exhaust fluid (DEF) tank
12.0 L
3.17 U.S. gal.
Serviceability
Loaders
Precision AG
Guidance
Optional: AutoTrac™ with AutoTrac Basic
Miscellaneous
AutoTrac ready
Optional with PowrQuad™ PLUS/Powr8™ models
ISOBUS ready
Optional with PowrQuad™ PLUS/Powr8™ models
Country of manufacture
Pune, India
Additional information
a
a
6
6
D
D
X
