John Deere XUV Integrated Sprayer Wiring Harness & Switch LP68195

01/07/2023
John Deere Gator

This Sprayer Wiring Kit provides plug-and-go functionality for customers with Full-Size Crossover Gator™ UTVs with Deluxe cargo boxes and compatible Gator sprayers. Instead of connecting a sprayer's wiring directly to the battery, this kit utilizes the vehicle's pre-installed wiring for a cleaner initial installation and simplified routine attachment afterwards.

Purchase

LP68195

Installation Instructions

Included with each kit are four harnesses. Two (the Upper and Lower Harnesses) are for the on/off rocker switch, which can be installed in one of the blank switch plates on the vehicle's dash. The Chassis Harness runs along the rear of the chassis, extending power and data ports to the back corner of the vehicle. Lastly, the Sprayer Harness connects to the Chassis Harness and runs to the sprayer pump, providing a clean and tidy wiring solution.

Key Features

  • Plug-and-go compatibility - by utilizing the vehicle's pre-installed wiring instead of connecting directly to the battery
  • Convenient dash-mounted switch - puts on and off control of a sprayer within short reach

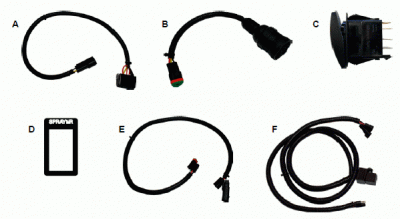

Includes

  • Upper Dash Harness
  • Lower Dash Harness
  • Rocker Switch (On/Off)
  • Rocker Switch Sticker
  • Chassis Harness
  • Sprayer Harness
  • Hardware (includes zip ties and wire harness clips)
  • Installation Instructions

This wiring kit is compatible with John Deere Gator™ Utility Vehicles XUV835E, XUV835M, XUV835R, XUV865E, XUV865M, and XUV865R.

M & R spec models will require installation of BM26268.
